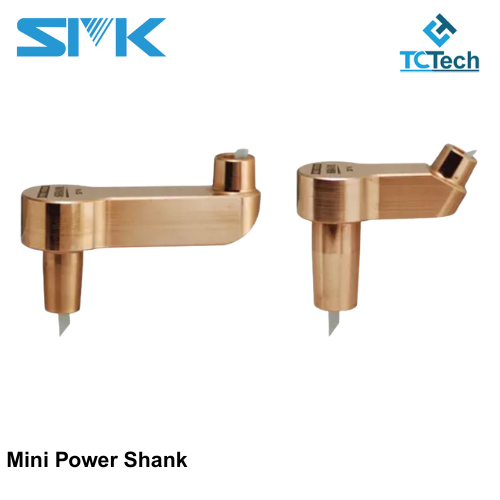

Mini power shank
Overview
Mini Power Shank is a shank designed for welding deep workpieces and extremely narrow workpieces.
Electrode tip is replacable, please use tip that meets your welding conditions.
– Registered design
Features
Completely cools to the tip top
Cooling water reaches to the electrode tip end, so it is excellent for cooling effect and improves welding quality.
Slim shape, avoid interference
Tip replacable type
The running cost is lower and more economical than the integrated electrode.
By using taper adapter, it can be used for more various shapes of workpieces.
※Limited to mini power shanks for φ16 cap tips.
Examples of welding with the Mini Power Shank
Shank with 100 mm offset for welding a deep workpiece
φ9 Cap Tip for welding a very narrow workpiece
30゜Shank plus Cap Tip for welding a very narrow flange
Examples of replaceable Cap Tips (Special Cap Tips are made to order)
Suggested Maximum pressure
In case of φ9 Cap Tip （90°type）with taper to match holder φ16 T=1/10
| E Offset ratio | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| T Max. pressure in case of φ16 (kN) | 1.5 | 1.3 | 1.3 | 1.3 | 1.0 | 0.8 | 0.8 | 0.5 | 0.5 |
In case of φ16 Cap Tip （90°type） with taper to match holder φ16 T=1/10
| E Offset ratio | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| T Max. pressure in case of φ16 (kN) | 3.0 | 2.5 | 2.5 | 2.5 | 2.0 | 1.5 | 1.5 | 1.0 | 1.0 |
In case of φ16 Cap Tip （30°type） with taper to match holder φ16 T=1/10
| E Offset ratio | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| T Max. pressure in case of φ16 (kN) | 3.0 | 2.5 | 2.5 | 2.5 | 2.0 | 1.5 | 1.5 | 1.0 | 1.0 |
※T The above max. pressure for φ16 should be used only as a guide.
※T In the case of φ12 Cap Tip, the max. pressure should be approx. half that of φ16.
Durability under extreme conditions is not guaranteed.
For φ9 cap tip (90° type)
■Holder side taper φ12 T=1/10
| Type name | E | Type name | E | |
| MPS-20-0712 | 20 | MPS-70-0712 | 70 | |
| MPS-30-0712 | 30 | MPS-80-0712 | 80 | |
| MPS-40-0712 | 40 | MPS-90-0712 | 90 | |
| MPS-50-0712 | 50 | MPS-100-0712 | 100 | |
| MPS-60-0712 | 60 |
■Holder side taper φ16 T=1/10
| Type name | E | Type name | E | |
| MPS-20-0716 | 20 | MPS-70-0716 | 70 | |
| MPS-30-0716 | 30 | MPS-80-0716 | 80 | |
| MPS-40-0716 | 40 | MPS-90-0716 | 90 | |
| MPS-50-0716 | 50 | MPS-100-0716 | 100 | |
| MPS-60-0716 | 60 |
For φ12 and φ13 cap chips (90° type)
■Holder side taper φ12 T=1/10
| Type name | E | Type name | E | |
| MPS-20-1012 | 20 | MPS-70-1012 | 70 | |
| MPS-30-1012 | 30 | MPS-80-1012 | 80 | |
| MPS-40-1012 | 40 | MPS-90-1012 | 90 | |
| MPS-50-1012 | 50 | MPS-100-1012 | 100 | |
| MPS-60-1012 | 60 |
■Holder side taper φ16 T=1/10
| Type name | E | Type name | E | |
| MPS-20-1016 | 20 | MPS-70-1016 | 70 | |
| MPS-30-1016 | 30 | MPS-80-1016 | 80 | |
| MPS-40-1016 | 40 | MPS-90-1016 | 90 | |
| MPS-50-1016 | 50 | MPS-100-1016 | 100 | |
| MPS-60-1016 | 60 |
■Holder side taper φ16 T=MT#2
| Type name | E | Type name | E | |
| MPS-20-1016M | 20 | MPS-70-1016M | 70 | |
| MPS-30-1016M | 30 | MPS-80-1016M | 80 | |
| MPS-40-1016M | 40 | MPS-90-1016M | 90 | |
| MPS-50-1016M | 50 | MPS-100-1016M | 100 | |
| MPS-60-1016M | 60 |
For φ16 cap chips (90° type)
■Holder side taper φ12 T=1/10
| Type name | E | Type name | E | |
| MPS-20-12612 | 20 | MPS-70-12612 | 70 | |
| MPS-30-12612 | 30 | MPS-80-12612 | 80 | |
| MPS-40-12612 | 40 | MPS-90-12612 | 90 | |
| MPS-50-12612 | 50 | MPS-100-12612 | 100 | |
| MPS-60-12612 | 60 |
■Holder side taper φ16 T=1/10
| Type name | E | Type name | E | |
| MPS-20-12616 | 20 | MPS-70-12616 | 70 | |
| MPS-30-12616 | 30 | MPS-80-12616 | 80 | |
| MPS-40-12616 | 40 | MPS-90-12616 | 90 | |
| MPS-50-12616 | 50 | MPS-100-12616 | 100 | |
| MPS-60-12616 | 60 |
■Holder side taper φ16 T=MT#2
| Type name | E | Type name | E | |
| MPS-20-12616M | 20 | MPS-70-12616M | 70 | |
| MPS-30-12616M | 30 | MPS-80-12616M | 80 | |
| MPS-40-12616M | 40 | MPS-90-12616M | 90 | |
| MPS-50-12616M | 50 | MPS-100-12616M | 100 | |
| MPS-60-12616M | 60 |
For φ12 and φ13 cap chips (30° type)
■Holder side taper φ16 T=1/10
| Type name | E | Type name | E | |
| MPS30-25-1016 | 25 | MPS30-70-1016 | 70 | |
| MPS30-30-1016 | 30 | MPS30-80-1016 | 80 | |
| MPS30-40-1016 | 40 | MPS30-90-1016 | 90 | |
| MPS30-50-1016 | 50 | MPS30-100-1016 | 100 | |
| MPS30-60-1016 | 60 |
■Holder side taper φ16 T=MT#2
| Type name | E | Type name | E | |
| MPS30-25-1016M | 25 | MPS30-70-1016M | 70 | |
| MPS30-30-1016M | 30 | MPS30-80-1016M | 80 | |
| MPS30-40-1016M | 40 | MPS30-90-1016M | 90 | |
| MPS30-50-1016M | 50 | MPS30-100-1016M | 100 | |
| MPS30-60-1016M | 60 |
For φ16 cap chips (30° type)
■Holder side taper φ16 T=1/10
| Type name | E | Type name | E | |
| MPS30-25-12616 | 25 | MPS30-70-12616 | 70 | |
| MPS30-30-12616 | 30 | MPS30-80-12616 | 80 | |
| MPS30-40-12616 | 40 | MPS30-90-12616 | 90 | |
| MPS30-50-12616 | 50 | MPS30-100-12616 | 100 | |
| MPS30-60-12616 | 60 |
■Holder side taper φ16 T=MT#2
| Type name | E | Type name | E | |
| MPS30-25-12616M | 25 | MPS30-70-12616M | 70 | |
| MPS30-30-12616M | 30 | MPS30-80-12616M | 80 | |
| MPS30-40-12616M | 40 | MPS30-90-12616M | 90 | |
| MPS30-50-12616M | 50 | MPS30-100-12616M | 100 | |
| MPS30-60-12616M | 60 |
| Trọng lượng | 0.85 kg |
|---|
